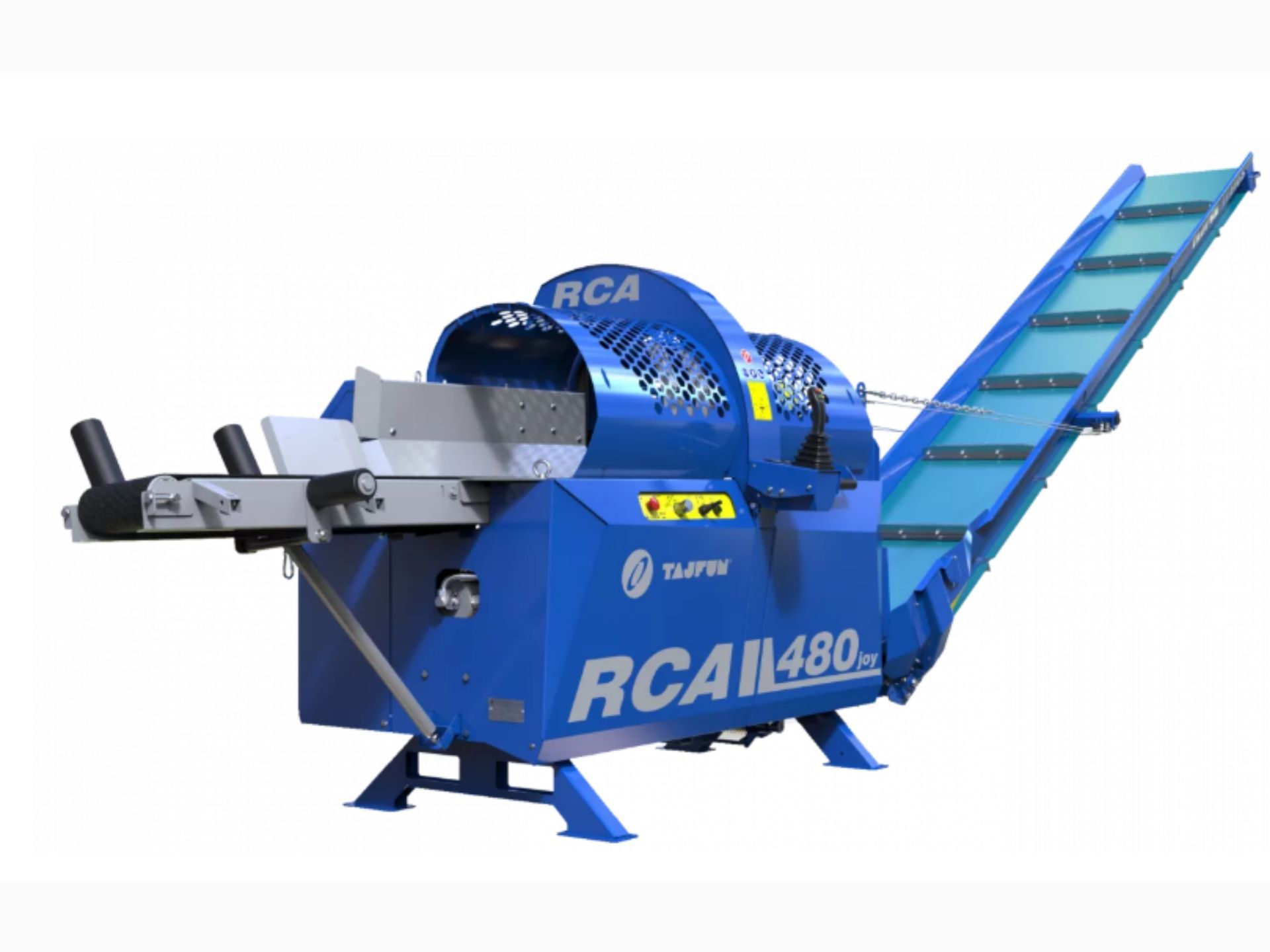

Tajfun RCA 480 JOY Firewood Processor
The Tajfun RCA 480 JOY is a high-capacity professional firewood processor designed for efficient processing of logs from 5 to 48 cm in diameter. Manufactured in Slovenia, it combines joystick operation, powerful cutting, 250 kN splitting force and hydraulic material handling for demanding commercial firewood production.
Tajfun RCA 480 JOY
Designed for high-volume professional firewood production, the Tajfun RCA 480 JOY delivers increased cutting and splitting capacity for larger timber. With a 5–48 cm log capacity, adjustable 25–50 cm cutting length, 250 kN splitting force and multiple discharge conveyor options, it provides a powerful and productive solution for forestry contractors and commercial firewood producers.
Technical Specifications
Processing Capacity
Maximum Log Diameter: 5–48 cm
Cut Log Length: 25–50 cm

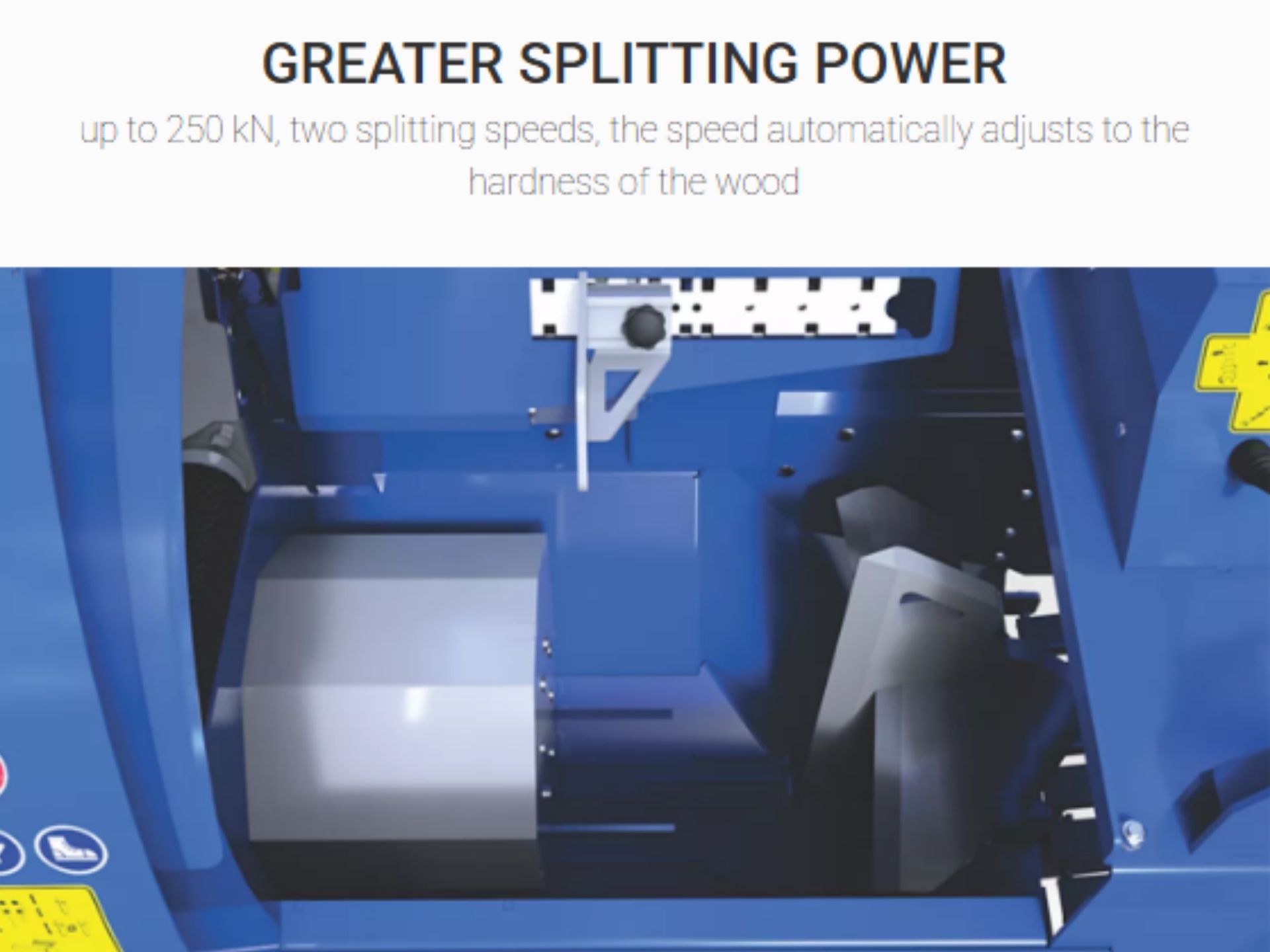

Splitting Force: 250 kN – Two Splitting Speeds
Saw
Saw Bar: Oregon 24" – 1.5 mm
Saw Chain: Oregon DuraCut™ 3/8", 42 teeth – 1.5 mm
Saw Operation: Electro-hydraulically controlled clutch with automatic chain start and stop
Power Requirements
Required Tractor Power: 30 kW
Tractor Power for Transport: 70–80 kW
PTO Speed: 400–430 rpm

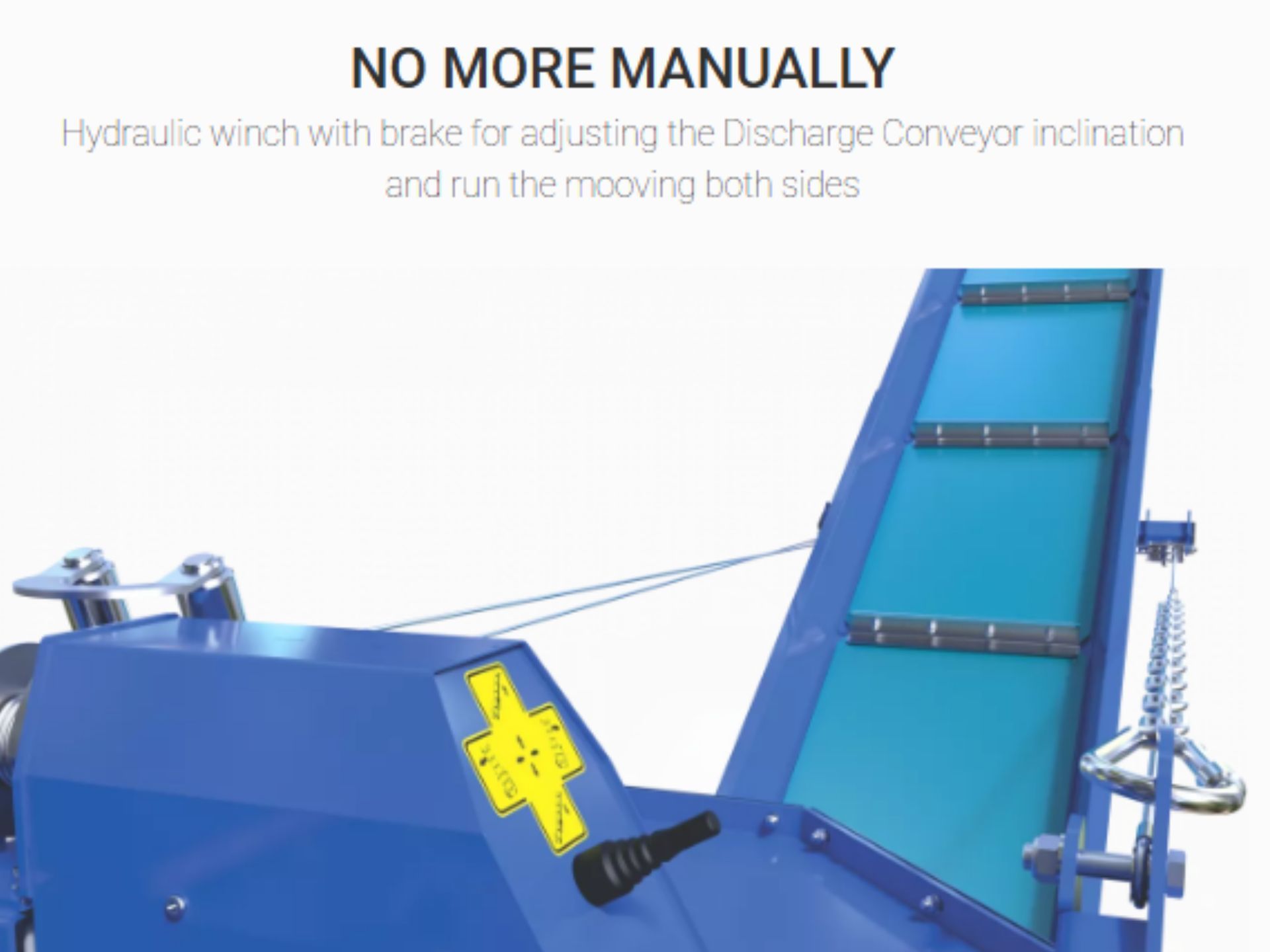

Discharge Conveyor – TT 404 / TT 404 R
Conveyor Length: 4,000 mm
Belt Width: 430 mm
Belt Speed: 0–0.8 m/s – Continuous Speed Control
Working Width: 6,100 mm
Working Height: 3,150 mm
Transport Height: 2,330 mm
Machine Weight: 1,300 kg
Conveyor Weight: 180 kg

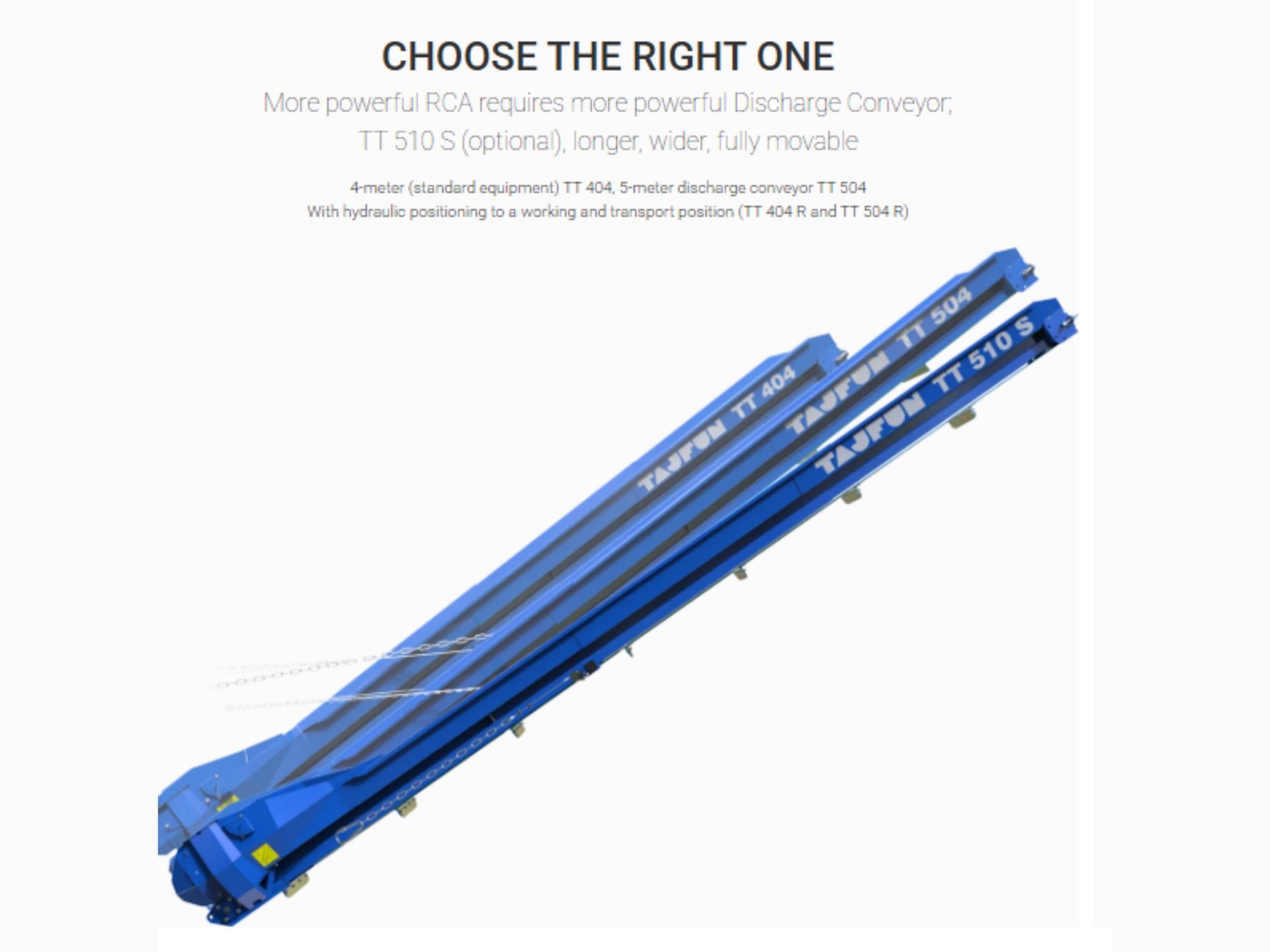

Discharge Conveyor – TT 504 / TT 504 R / TT 510 S
Conveyor Length: 5,000 mm
Belt Width: 580 mm
Belt Speed: 0–0.8 m/s – Continuous Speed Control
Working Width: 6,930 mm
Working Height: 3,800 mm
Transport Height: 2,630 mm
Machine Weight: 1,300 kg
Conveyor Weight: 210 kg
Machine Dimensions
Working Length: 1,600 mm
Transport Length: 1,600 mm
Transport Width: 2,410 mm
